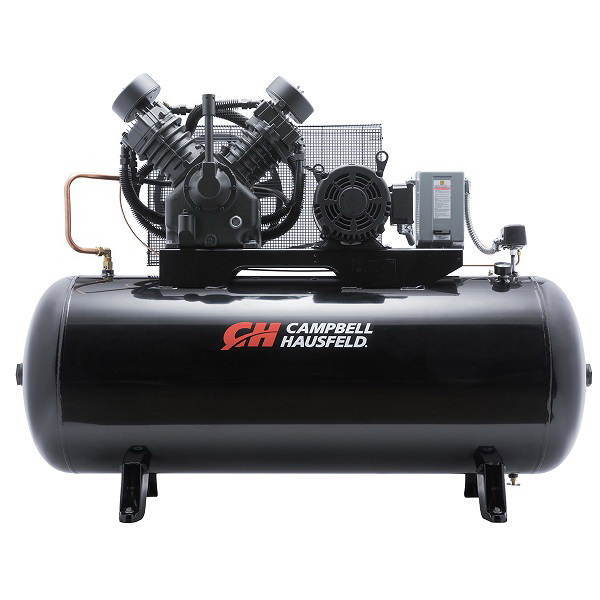

This 10 HP, 120 gallon horizontal two-stage compressor is ideal for auto repair facilities and tire repair outlets. It includes a long-life cast iron two-stage pump, designed with over 17,000 hours of rated life. (based on B-10 bearing rating) The head and valve plate feature an advanced design with Viton(r) high temperature o-rings for leak-proof sealing. Viton o-rings provide superior high pressure sealing compared to paper-type gaskets. Also, the crankshaft is fabricated of ductile iron and optimally balanced for smooth, low vibration operation.
Features:
- ASME certified tank for 200 PSI maximum pressure
- Mounted and wired motor starter for quick electrical hook up
- Industrial-rated NEMA motor for reliable service
- Fully enclosed metal belt guard for safe operation
- Pressure switch for automatic start stop operation
- CFM @ 90 PSI: 36
- CFM @ 175 PSI: 34.1
- Pump RPM: 700
- Voltage: 208-230/460 Volts
- Phase: 3
- Continuous Duty: No
- 3 year limited warranty
NOTE: This item is factory-built and shipped in the USA. Lead-times can vary depending on availability of parts to build.
Condition:
New
Manufacturer:
Campbell Hausfeld
MPN:
CE8001
UPC:
045564627201
LeadTime
:
2-5w
