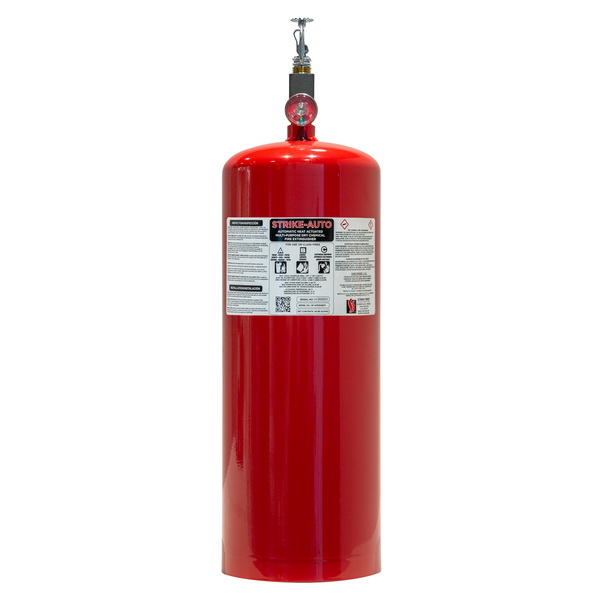

Strike First 20 lb. ABC Automatic Fire Extinguisher, Vertical

CODE: 1110-SF-AFE20ABCV

Price: $584.99

Available To Order

Quantity:

Add to wish list

PLEASE NOTE:

Estimated lead-time to ship is 1-2 weeks.

Description
Send to friend
Features

Heat-activated automatic spot protection fire extinguisher by Strike First. Part Number SF-AFE20ABCV. Vertical Mount. Charged with 90% ABC multi-purpose dry chemical agent effective on Class A, Class B, and Class C fires. Can be used on local spot and total flood applications.

Note: Mounting bracket HDVB-3 sold separately.

Features:

Heat actuated using UL-Listed sprinkler head, rated at 165°F (74°C).
Disposable, does not require 6-yr or 12-yr maintenance and inspection. Discard after discharge or 12 years. Non-Refillable.
Cylinder designed and tested to meet US DOT requirements.
Designed to provide supplementary fire protection - not as a substitute for an engineered system.
Typical installation locations: Specific fire risk areas such as flammable liquid storage rooms, construction trailers, and manufacturing process areas such as paint booths.
Available in two mounting styles: Vertical and Horizontal. Each mounting style requires specially-designed heavy-duty mounting brackets.
Desgined and manufactured in Canada.

Technical Data Sheet (PDF): Strike First Automatic File Extinguishers

Agent Type:	ABC multipurpose dry chemical
Agent Capacity:	20 lb. (9.1 kg)
Ship Weight:	32 lbs. (14.5 kg)
Operating Pressure:	195 psi (1344 kPa)
Storage Temperature Range:	-65°F to 120°F (-54°C to 490°C)
Unit Length:	24.5 in. (62.2 cm)
Unit Diameter:	7.2 in. (18.3 cm)
Max Total Flood Valume:	2184 cu. ft.
Max Local Application Coverage Area:	12 ft. x 13 ft.
Max Height Above Hazard - Local Application:	4 ft.
Max Height Above Hazard - Flood Application:	14 ft.
Optional Bracket:	HDVB-3
