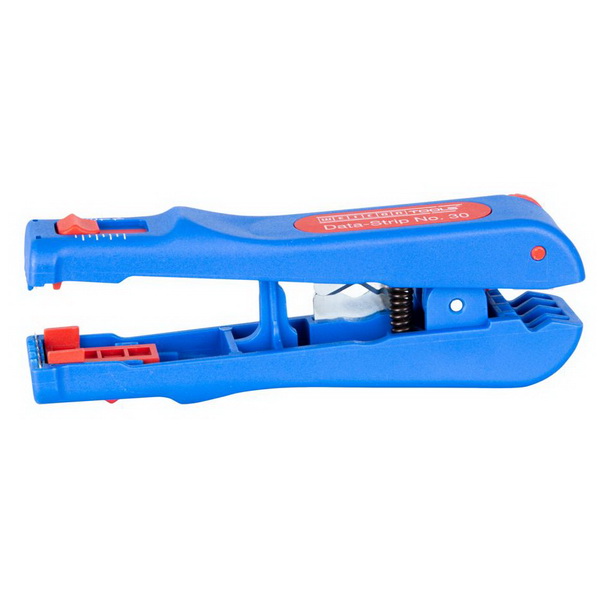

WEICON Data Cable Stripper No. 30

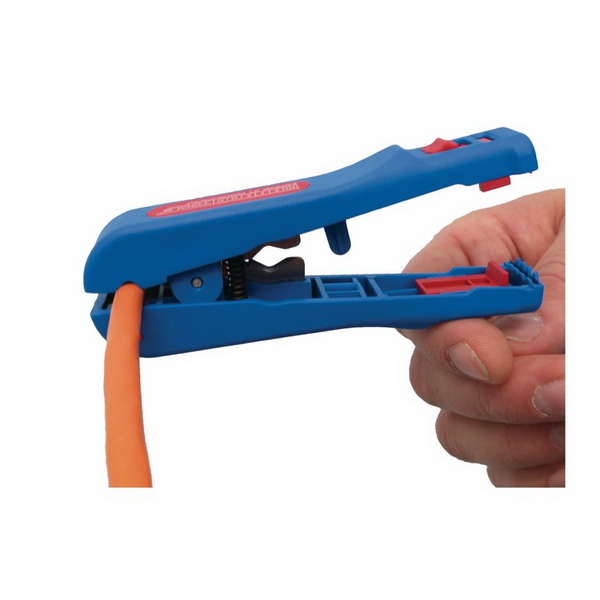

WEICON Data-Strip No. 30 is very versatile. In addition to data cables it also allows an accurate, fast and safe stripping of control cables, patch cables, telephone lines and bus lines.

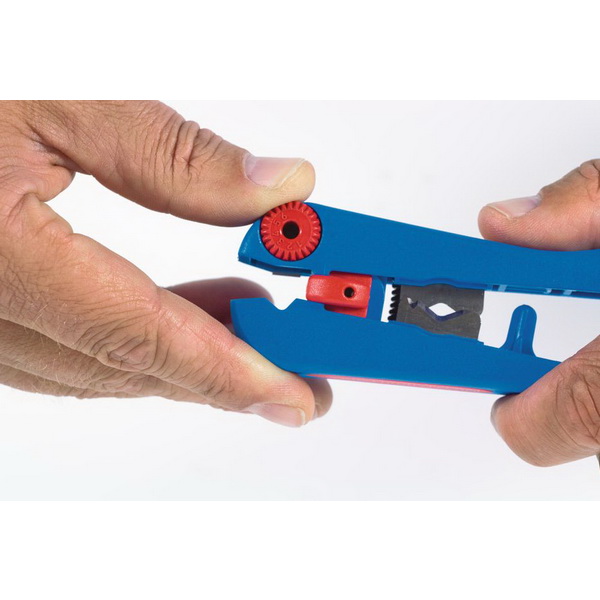

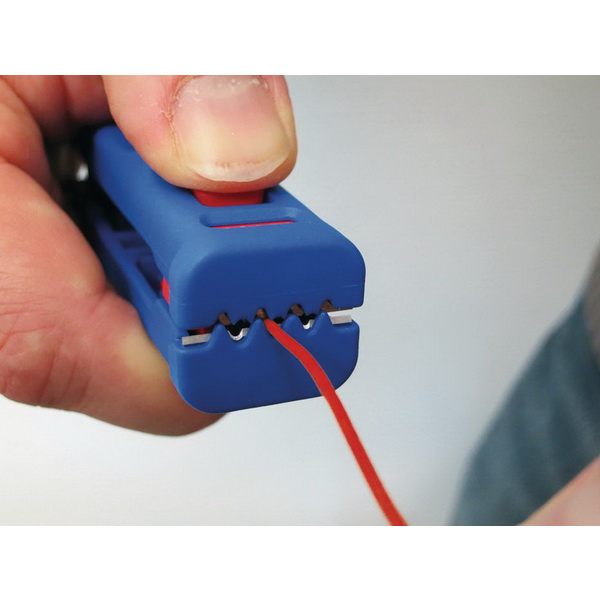

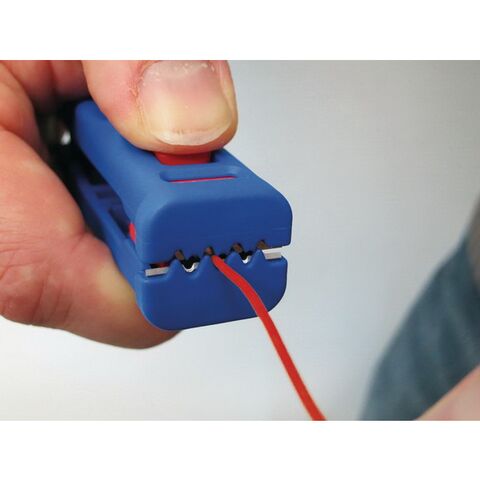

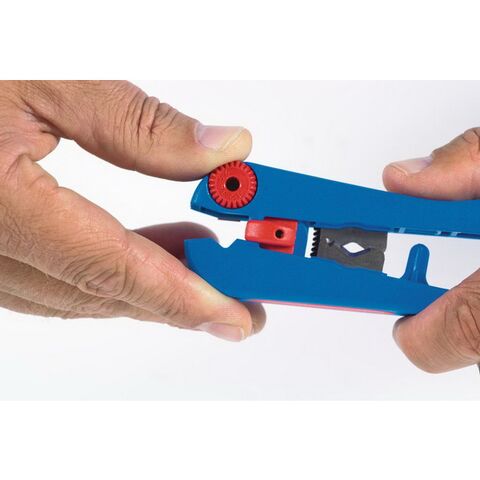

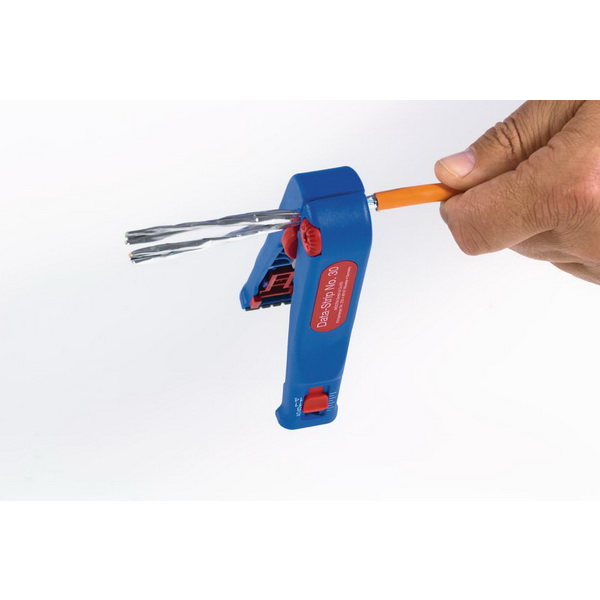

WEICON Data-Strip allows the dismantling of shielded data cables and special purpose cables with a diameter between 4 and 10 mm and an insulation thickness of 0.2 to 1.4 mm. The blade can be adjusted to different insulation strenghts with a small regulating wheel, with this blade it is possible to score slightly the shielding and to remove it easily. The adjustable blade can be renewed if necessary. The working range of the Weicon Data-Strip can be adjusted according to the cable size between Ø 0.2 - 0.8 mm. The tool has an integrated side-cutter for massive cables of up to Ø 8 mm.

Features:

• Inner blade can be set to the insulation thickness

Technical Data Sheet (PDF): WEICON Data-Strip No. 30
