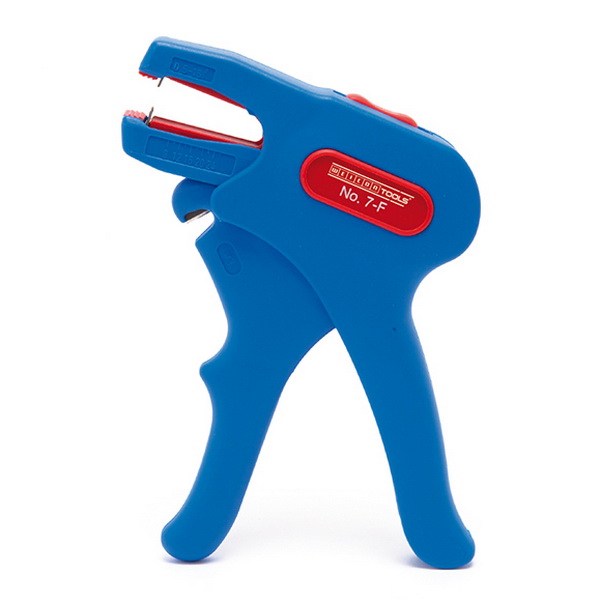

WEICON Automatic Wire Stripper No. 7-F, Flat Cable

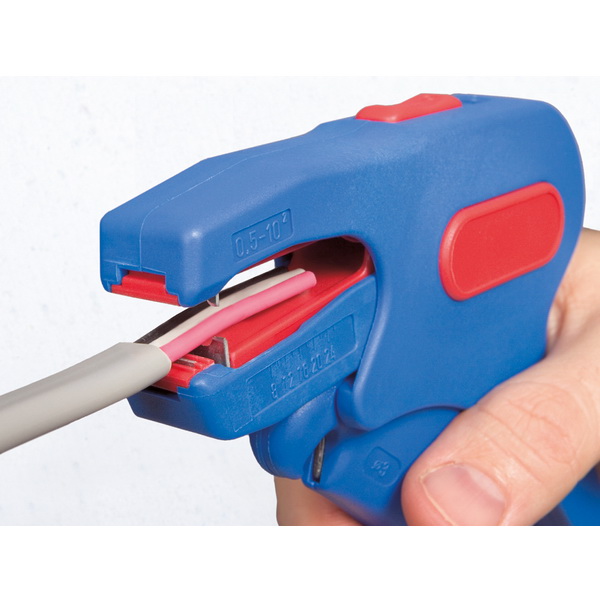

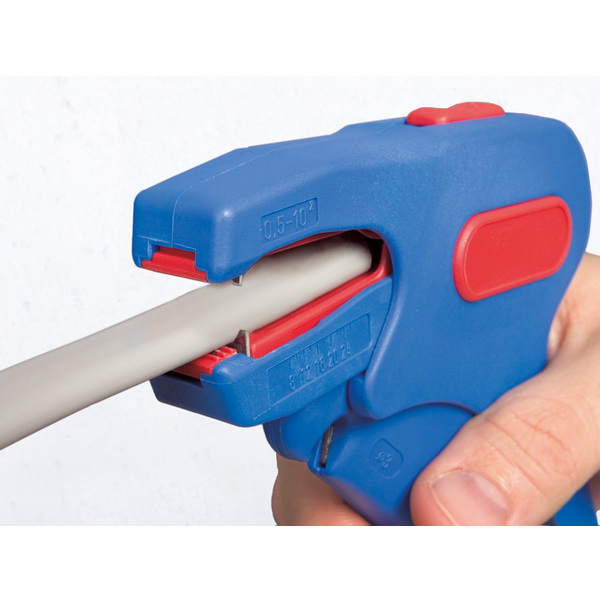

The WEICON 51001007 Number 7-F wire strippers allow flexible and solid conductors to be stripped easily, quickly and evenly. The wire strippers are ergonomically shaped and have an automatic scanner system to determine the cable diameter. This prevents damage to the inner conductor.

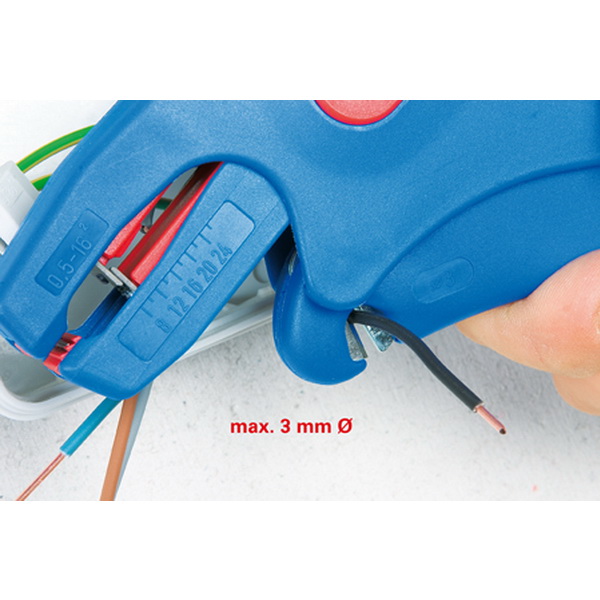

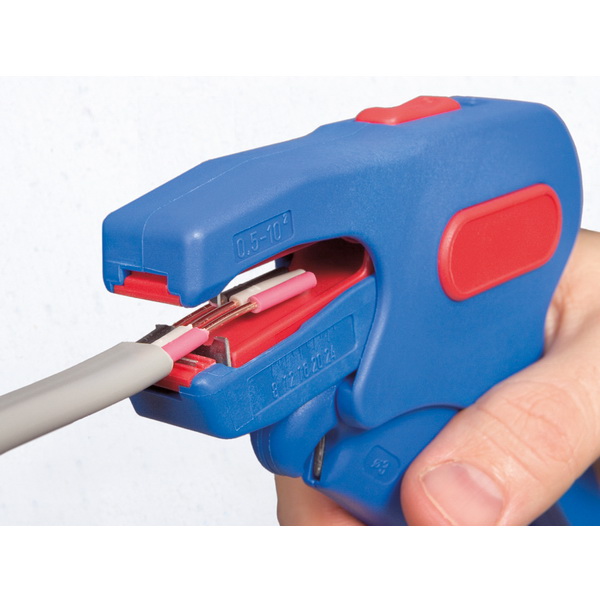

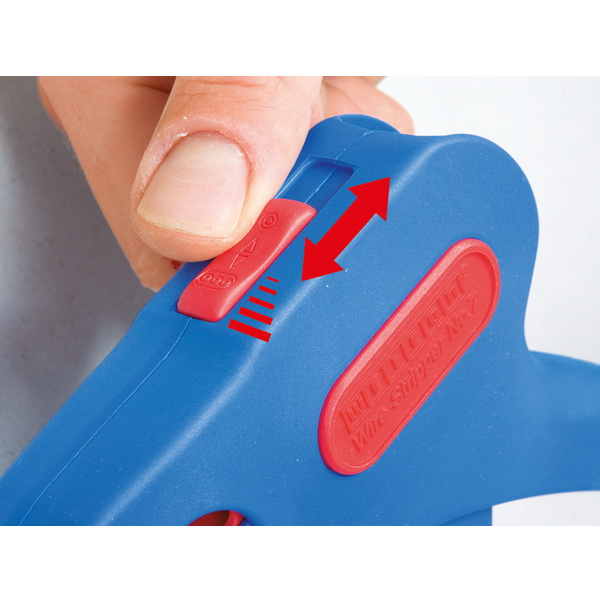

The WEICON Wire Stripper No. 7-F has a precise adjustment (5-fold) and an optical length scale of 8 - 24 mm (5/16 - 1 inch). This allows flexible round cables of 0.5 - 16.0 mm² (24 - 10 AWG) and solid round cables of 0.5 to 10 mm² (18 - 15 AWG) to be stripped. From 10 mm², cables must be stripped in two stages. The Wire Stripper No. 7-F is particularly well-suited to two- or three-core, PVC-insulated flat cables of 0.75 - 4.0 mm². An easy-to-access side cutter is integrated into the tool and can be used up to a cable diameter of 3 mm. It also has replaceable blades.

Technical Data Sheet (PDF): WEICON Automatic Wire Stripper #7-F
