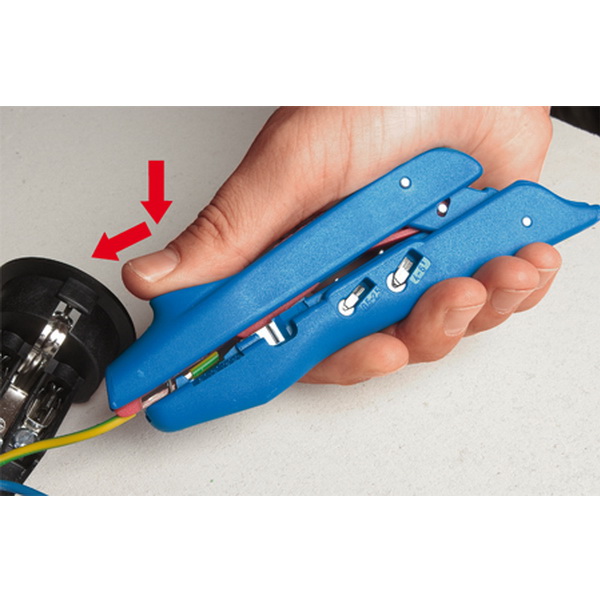

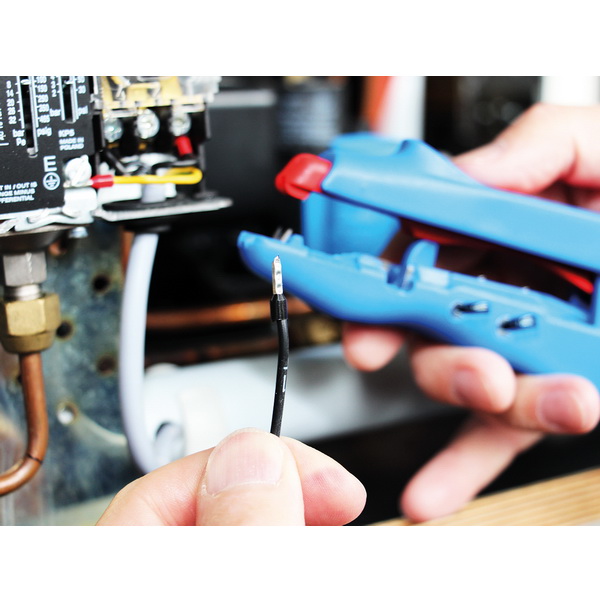

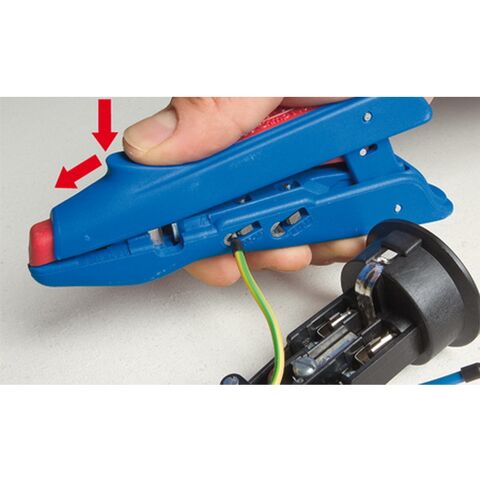

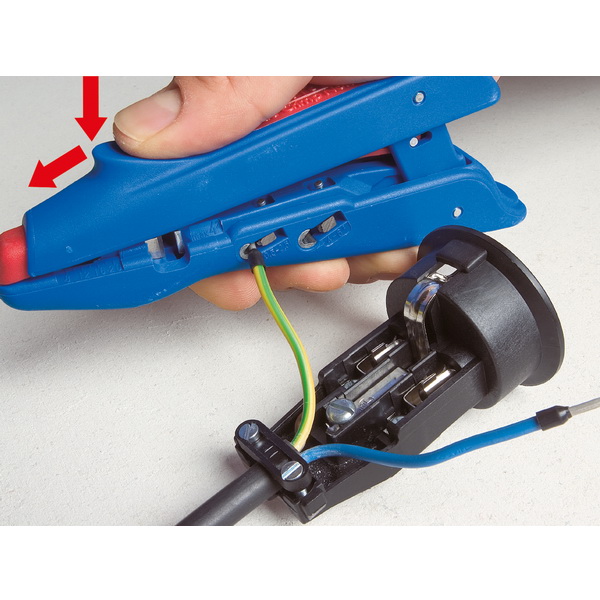

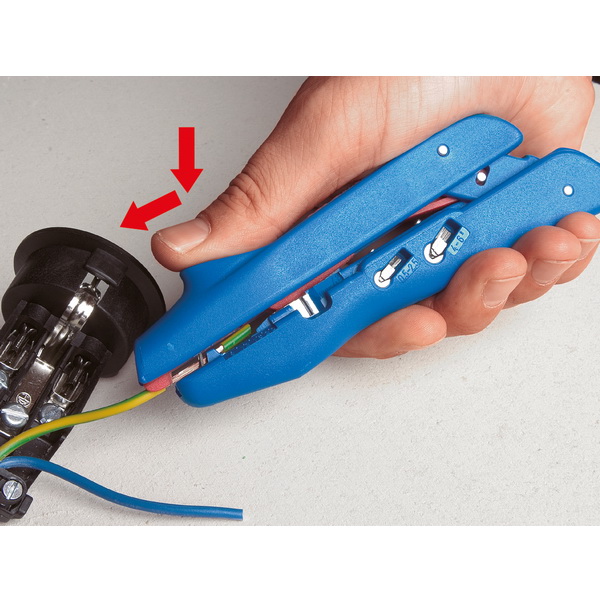

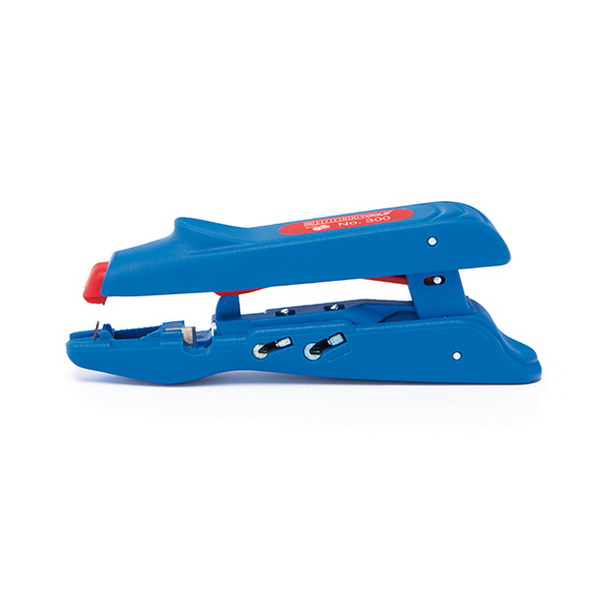

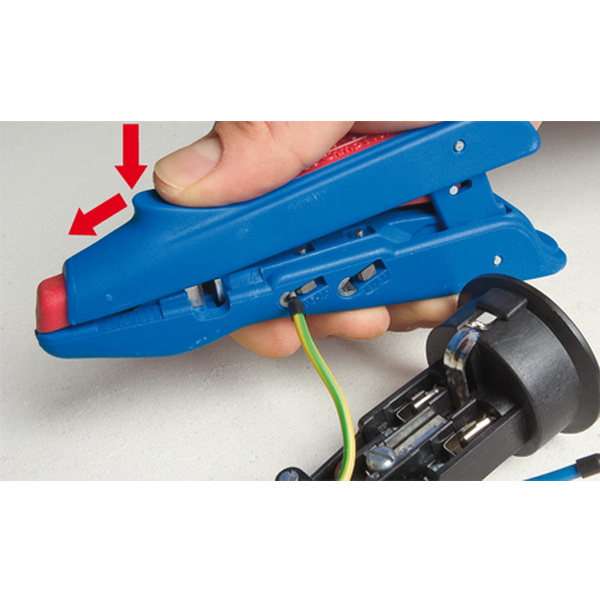

The WEICON Duo-Crimp No. 300 is a 3-in-1 tool can be used to strip conductors, crimp terminals, and features a side cutter. The automatic scanning system means that there is no need to adjust to the cable cross-section. The stripper has an optical length scale from 8 – 20 mm and is suitable for all flexible and solid conductors of 0.5 mm² - 6.0 mm². The Duo-Crimp No. 300 strips conductors at a length of 5 mm, preventing the individual conductors from splaying. The conductor can then be twisted.
Features:
- Optical length scale from 8 - 20 mm
- Suitable for all flexible and solid conductors of 0.5 mm² - 6.0 mm² (20 - 10 AWG)
- Strips conductors at a length of 5 mm, preventing the individual conductors from splaying
- Two crimping ranges of 0.5 – 2.5 mm² and 4.0 – 6.0 mm² are available for crimping terminals
- Easy-to-reach side cutter can be used up to a cable diameter of 6 mm (solid conductors up to 4 mm)
