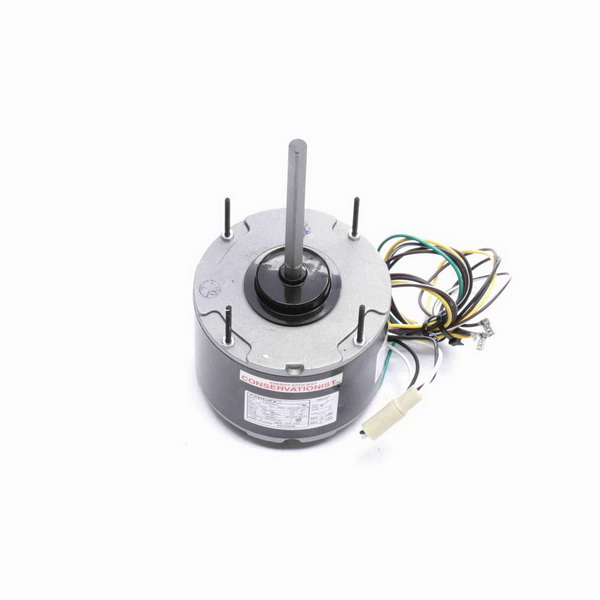

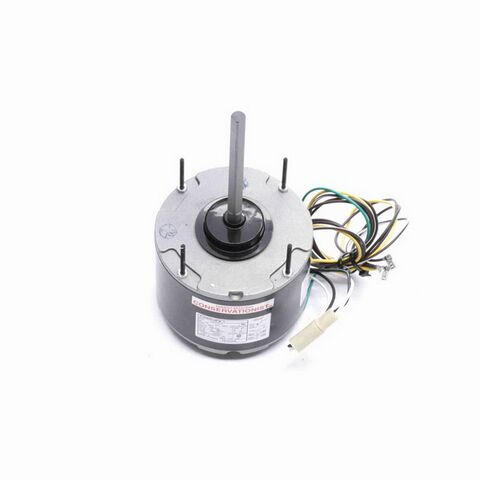

Century FS1026S Enclosed Condenser Fan Motor 1/4 HP 208V

CODE: 2260-FS1026S


Price: $89.99

In stock

Century 1/4 HP enclosed condenser fan motor. Its universal all angle mounting, extended thru bolts, reversible rotation makes this motor a great choice when changing out most heat pump and condenser fan motors. Thermally protected. Shaft Dimension: 1/2" x 6-7/16".

Features:

  • HP: 1/4
  • RPM: 1075
  • Voltage: 208-230
  • Full Load Amps: 1.5
  • Speeds: 1
  • Motor Diameter: 5-5/8"
  • Enclosure: TEAO
  • Permanent Split Capacitor
  • Frame: 48Y
  • Energy Efficient
  • Sleeve Bearing
  • Reversing plug
  • 27" leads
  • Extended thru-bolts
  • 60 degree C ambient
  • All Angle Mount
  • Universal, replaces many OEMs
  • Capacitor not included
