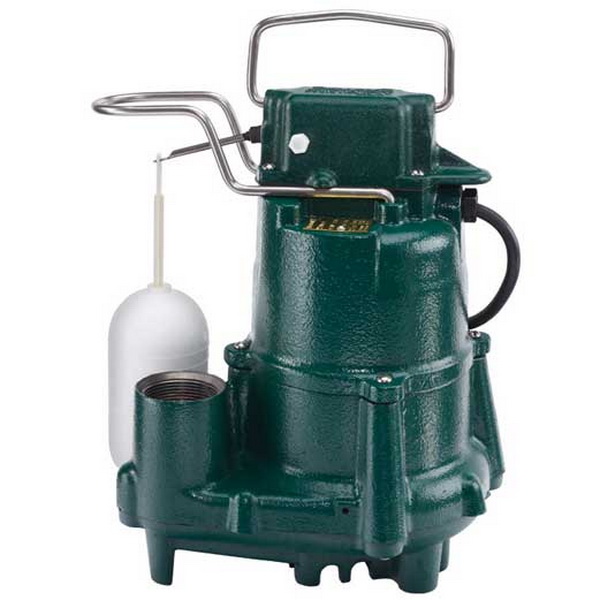

Zoeller 98-0001 M98 Flow Mate Sump Pump 1/2 HP Automatic

Zoeller M98 (98-0001) Flow Mate Non-Auto Sump Pump - Effluent or dewatering submersible pump for septic tank, low pressure pipe (LPP) and enhanced flow STEP systems.

This "Flow-Mate" model submersible pump is designed for use in residential or light commercial dewatering applications and can be used to transfer groundwater or effluent. This durable cast iron pump includes a powder coated epoxy finish to prevent corrosion and is designed to provide great heat dissipation from the motor, ensuring a long service life. As with every Zoeller pump, each one is 100% pressure-tested, submerged and run to ensure quality and reliability for years of trouble-free performance!

Features:

• Automatic model
• Float-operated 2-pole mechanical switch
• Corrosion-resistant, powder coated epoxy finish
• Durable, cast iron construction
• Cast iron switch case, motor, pump housing and base
• No sheet metal parts to rust or corrode
• All castings are cast iron class 25-30 25000# tensile strength
• Stainless steel screws, guard, handle, arm and seal assembly
• Permanent split capacitor motor, oil-filled and hermetically-sealed, automatic reset thermal overload protection
• Bearings – upper and lower oil-fed cast iron
• Carbon and ceramic shaft seal
• Entire unit pressure-tested after assembly
• Watertight, neoprene square ring between motor and pump housing
• Maximum temperature for effluent or dewatering: 130 °F (54 °C)
• 15 ft. UL listed, 3-wire cord and plug
• Passes 1/2" (13 mm) spherical solids
• No screens to clog
• 1-1/2" NPT discharge (1-1/2" x 2" PVC adapter included with BN and BE Models)
• On point: 9-1/2" (24 cm)
• Off point: 3" (8 cm)
• Major width: 10-1/8" (25.7 cm)
• Major height: 12" (30 cm)
