Hastings 1004 Capacitor Discharge Tool, 2ft w/6ft #2 Grounding Cable

CODE: 1800-1004


Price: $199.99

Available To Order

PLEASE NOTE:

  • Estimated lead-time to ship is 2 weeks.

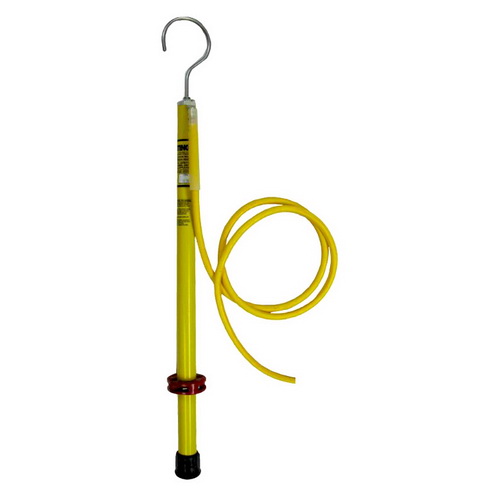

Hastings 1004 Capacitor Discharge Tool, 2-foot fiberglass pole with 6 feet of #2 Grounding Cable

Features:

  • Designed to safely drain the capacitive charge after the circuit is de-energized
  • Each 10MW threaded add-on resistor (sold separately) is rated for 10KV and may be combined for higher residual voltage applications (e.g.: A set of cables hipot tested 37.5kV would need four resistors) Hastings #6753.
  • Maximum range: 1.5" with no minimum
  • Rated at 43,000A for 15 cycles or 30,000A for 30 cycles
  • Factory assembled to include the following components: fiberglass pole with hand guard, 1/4" stainless steel hook with a 1-3/8" opening, rubber tool holder, #2 Str. Copper Grounding Cable with safety yellow neoprene jacket, 2 hole tin plated copper lug is terminated on one end with a heat shrink sleeve
  • 6 foot grounding cable
  • 2 foot fiberglass pole
  • Clamp NOT included

Note: If you need custom lengths, please contact us for a quote.
