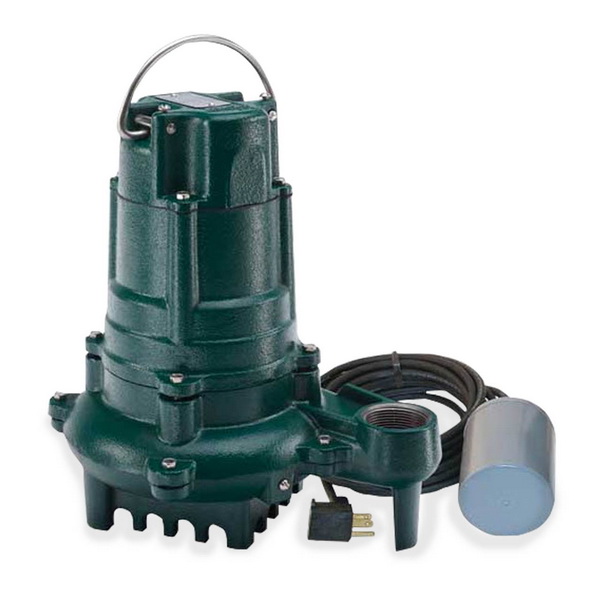

Zoeller BN137 (137-0045) with Variable Level Float Switch. Effluent or dewatering submersible pump for septic tank, low pressure pipe (LPP) and enhanced flow STEP systems.
Features:
- Automatic Model
- Designed for heavy duty effluent applications
- Castings - Model 137, all cast iron ASTM class 25, 2500# tensile strength
- 20 ft. variable level float switch (VLFS) for automatic operation
- 1-1/2"x 2" PVC adapter
- Corrosion resistant powder coated epoxy finish
- Durable cast iron construction - switch case motor and pump housing, base and impeller
- Float operated 2 pole mechanical switch
- No sheet metal parts to rust or corrode
- Oil filled and hermetically sealed automatic reset thermal overload protected (1 Ph) motor
- Upper and lower sleeve bearings running in bath of oil
- Carbon and ceramic shaft seal
- Stainless steel screws, bolts, guard, handle, arm and seal assembly
- Maximum temperature for effluent or dewatering 130°F (54°C) (extra duty 140°F 60°C)
- Passes 5/8" spherical solids
- No screens to clog
- 1-1/2" NPT discharge
- On point: 10" Off point: 2-3/4"
Condition:
New
Manufacturer:
Zoeller
MPN:
137-0045
UPC:
053514014278
