Buckeye 82001 Mini-Guard Fire Extinguisher Vertical Mount ABC 20 lb.

CODE: 1113-82001


Price: $749.99

Available To Order

PLEASE NOTE:

  • Estimated lead-time to ship is 4 weeks.

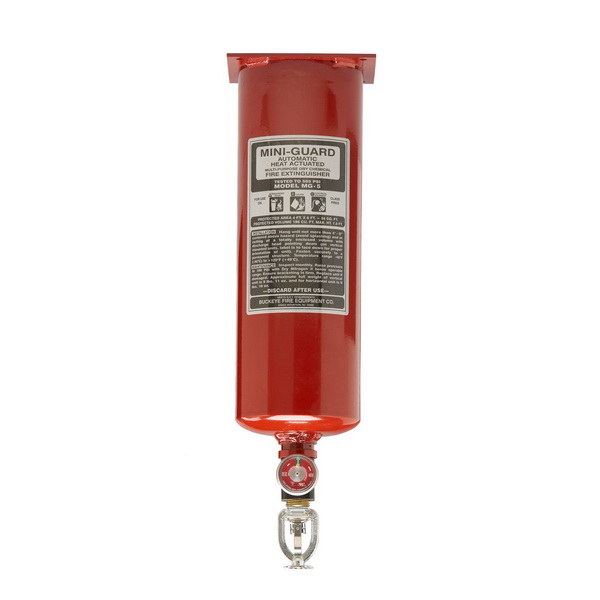

The Buckeye 82001 Mini-Guard Fire Extinguisher Vertical Mount ABC Dry Chemical 20 lb.

Designed for single unit installations, the Buckeye Fire Equipment Mini-Guard automatic spot protection extinguishers provide supplementary fire protection suitable for some local and total flood applications. These units are not intended as a substitute for automatic sprinkler systems, fixed pre-engineered or engineered extinguishing systems and are not intended to be multiple mounted.

The Mini-Guard automatic spot protection extinguishers are designed, constructed, and tested to the same engineering standards as our portable fire extinguishers. The units are fitted with a detection sprinkler head that is rated at 165° F. They are single-use extinguishers and cannot be refilled.

MINI GUARD units are available in horizontal and vertical mounts.

TYPICAL USES: The dedicated protection of specialized equipment used in business or manufacturing processes or for specific fire risk areas such as flammable liquid storage rooms (dry chemical).

Suitable for use on the following types of fire: Class A Fires: Fires involving ordinary combustible materials, such as wood, cloth, paper, rubber, and many plastics. Class B Fires: Fires involving flammable liquids, combustible liquids, petroleum greases, tars, oils, oil-based paints, solvents, lacquers, alcohols, and flammable gases. Class C Fires: Fires that involve energized electrical equipment.



Agent Type: ABC multipurpose dry chemical
Agent Capacity: 20 lb. (9.1)
Ship Weight: 36 lb. (16.3 kg)
Operating Pressure: 195 psi (1344 kPa)
Unit Length: 21.875 in (55.6 cm)
Unit Diameter: 7.5 in (19.1 cm)
Max Total Flood Valume: 2184 cu. ft.
Max Total Flood Height Above Hazard: 14 ft.
Local Application Coverage Areas: 12 ft. x 13 ft.
Bracket: * Has a bottom plate with 4 holes for mounting



Buckeye Fire Extingusher General Features

  • Manufactured to meet UL's rigorous standards for commercial hazard protection and backed by our manufacturer's warranty
  • Anodized metal & brass valve assemblies for superior strength and corrosion resistance
  • Industrial grade steel & aluminum cylinders with polyester powder coating designed to withstand harsh environments & rough usage
  • Metal pull pins, vehicle brackets and wall hooks for extended unit service life
  • The extinguisher nameplate incorporates bilingual operating and maintenance instructions. Available in English/Spanish & English/French
  • Color-coded gauges show operating status at-a-glance
  • Extinguishers have model and serial number bar coding for easy and accurate maintenance history
