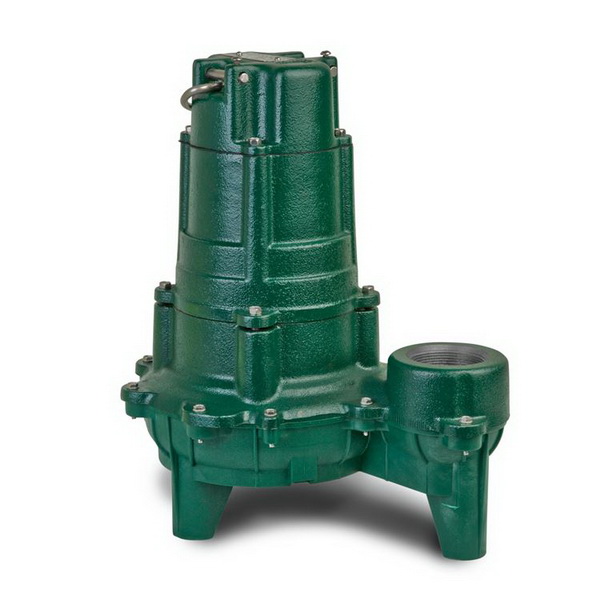

Zoeller 270-0002 N270 Waste-Mate Sewage Pump 1 HP 115V Automatic

Zoeller N270 (270-0002) Submersible sewage/effluent or dewatering pump.

The "Waste-Mate" series of submersible pumps is designed for use in residential or light commercial dewatering and wastewater applications and can be used to transfer groundwater, effluent or raw sewage. The innovative vortex impeller design reduces the risk of clogging and allows each pump to pass 2" (50 mm) spherical solids. These durable cast iron pumps include a powder coated epoxy finish to prevent corrosion and are designed to provide great heat dissipation from the motor, ensuring a long service life. As with every Zoeller pump, each one is 100% pressure-tested, submerged and run to ensure quality and reliability for years of trouble-free performance!

Features:

• Non-Automatic Model - Requires Float Switch
• Durable cast construction, ASTM Class 25 cast iron, motor housing cover and pump housing
• Engineered plastic base on model 270
• Not affected by materials normally found in drainage and sewage sumps
• Stainless steel screws, bolts and handle
• Oil-filled, hermetically sealed, automatic reset thermal overload protected motor
• Neoprene square ring & gasket
• Carbon and ceramic shaft seal
• Upper sleeve bearing and lower ball bearing running in bath of oil
• 20 ft. UL listed, 3-wire cord and plug
• Passes 2" spherical solids
• 2" NPT discharge
• Corrosion resistant powder coated epoxy finish
• 115V, 1 Ph, 1 HP

Consult factory for special applications:

• Electrical alternators for duplex systems available with variable level control switches
• Minimum recommended basin size (small load applications) simplex – 18" x 30", duplex – 30" x 30"
• Standard model 270 – 49 lbs, 1 HP
• High water alarms available
• Mechanical alternators available for duplex systems
