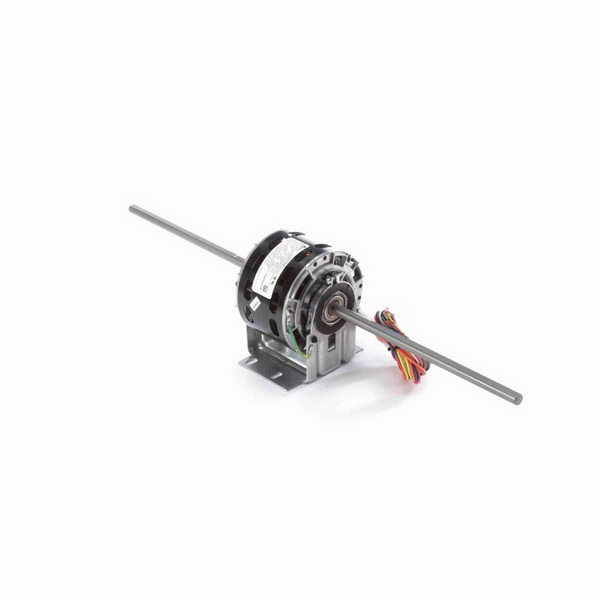

Century five speed, shaded pole, double shaft fan coil motor is ideal for use with room air conditioners, evaporative coolers, remote fan coil units, and other shaft-mounted fan and blower applications. Shaft Dimension: 10-11/16" x 1/2" x 10-11/16".
Features:
- HP: 1/10, 1/20, 1/30, 1/40, 1/70
- RPM: 1050
- Voltage: 115
- Full Load Amps: 3.2 / 2.3 / 1.7 / 1.4 / 0.96
- Speeds: 5
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
- Frame: 42Y
- Enclosure: Open
- Mounting: Resilient
- Sleeve Bearing
- Shaded Pole
- Poles: 6
- Rotation: CWLE
- Motor Diameter: 5"
- Shaft Diameter: 1/2" Flat
- Shaft Length: 10.690" each side
- Frame Length: 3.50"
- Overall Length: 24.88"
Condition:
New
Manufacturer:
Century
MPN:
89PSC
UPC:
786674006097
