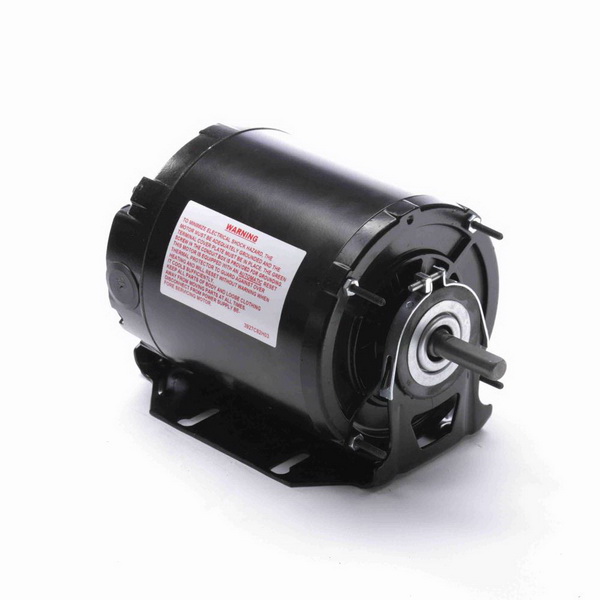

Century ARB2024L3 Split Phase Belt Drive Blower Motor 1/4 HP 115/208V

The Century split phase belt drive blower motor is perfect for exhaust fans, air circulators, and other air-over fan applications. Shaft Dimension: 1/2" x 1-5/8".

Features:

• HP: 1/4
• RPM: 1725
• Voltage: 115 / 208-230
• Full Load Amps: 3.3 / 1.7
• NEMA/IEC Frame: 48Y
• Speeds: 1
• Motor Diameter: 5-5/8"
• Enclosure: TEAO
• Mounting: Resilient
• Split Phase
• Ball Bearing Sleeve
• Extended thru-bolts shaft end
