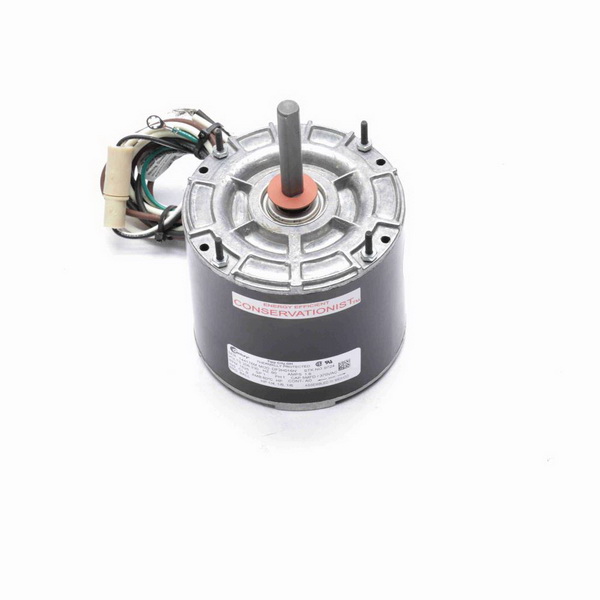

Century 9724 Multi-Fit Condenser Fan Motor 1/4 HP 208V 3 SPD

CODE: 2260-U9724


Price: $112.99

In stock

The Century / AO Smith Multi-Mount and Multi-Horsepower PSC condenser fan motor is a totally enclosed multi-use motor for various OEM applications. This motor will replace 4.33", 4.42", and 4.62" mounting circles without changing the capacitors. This motor is energy efficient and ensures full performance even in high temperature situations. This motor has class B insulation, ball bearings, and clock wise or counter clockwise rotation. The motor measures 4-1/2" without the shaft. Shaft Dimension: 1/2" x 3".

Features:

  • HP: 1/4, 1/5, 1/6
  • RPM: 1075
  • Voltage: 208-230
  • Full Load Amps: 1.6 / 1.0 / 0.7
  • NEMA/IEC Frame: 42
  • Speeds: 3
  • Motor Diameter: 5"
  • Enclosure: TEAO
  • Ball Bearing
  • Permanent Split Capacitor
  • 36" leads
