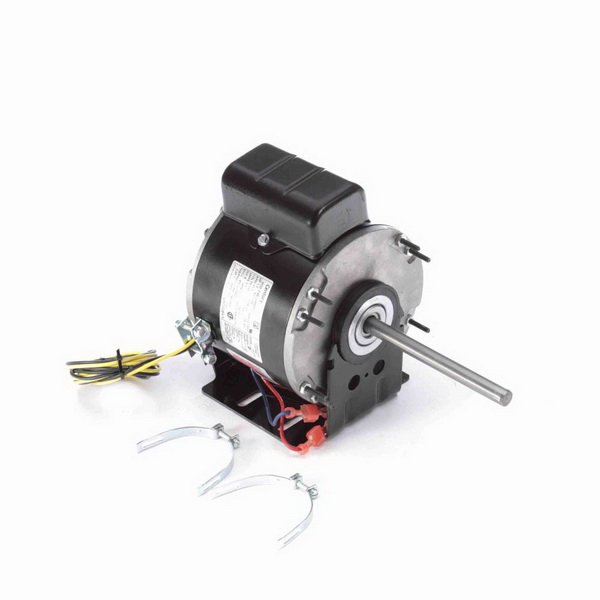

AO Smith UH1026V1 1/4 HP Permanent Split Capacitor Unit Heater Motor

CODE: PEMS-UH1026V1


Price: $144.26

In stock

Specifications:

  • Motor Type: Permanent Split Capacitor
  • HP: 1/4
  • Nameplate RPM: 1075
  • Voltage: 115
  • NEMA/IEC Frame: 48Y
  • Enclosure: Totally Enclosed Air-Over
  • Mounting: Cradle/Stud
  • Number of Speeds: 1
  • Hz: 60
  • Phase: 1
  • Full Load Amps: 4.9
  • Thermal Protection: Auto
  • Insulation Class: B
  • Service Factor: 1.0
  • Bearings: Ball
  • Ambient (C): 40
  • Rotation: CW/CCW
  • Duty: Continuous Air-over
  • Efficiency Group: High
  • Overall Length (In.): 10 3/8
  • Length Less Shaft (In.): 5 3/8
  • Shaft Dia. (In.): 1/2
  • Shaft Length (In.): 5
  • Body Dia. (In.): 5 5/8
  • Ring Dia. (In.): 2 1/2
  • Ring to Ring Center (In.): 4 15/16
  • Stud Location: Shaft End
  • Stud Quantity: 4
  • Stud Pattern (In.): 3 5/8 x 3 5/8, 4 1/2 x 2 9/16
  • Stud Length (In.): 5/8
  • Stud Size: 8-32 NF
  • Application: Unit Heaters and Other Shaft-mounted Fan and Blower Equipment in Dusty, Dirty, Noncombustible Environments
  • RPM Range: 1000-1380
  • Standards: UL Recognized (E46412/E49807), CSA Certified (LR43341/LR4642)
  • Includes: 5 MFD 370 VAC Capacitor, Four 8-32 Dummy Studs, Resilient Rings, Mounting Base, 2 Mounting Clamp Assemblies
  • Mfr. Stock No.: UH1026V1
